Attleboro, Massachusetts USA – Barry Industries announces the introduction of an ultra-broadband, DC to 44GHz chip termination for microwave applications. The uniquely designed TS0808ZZ-50R0JN-2S is surface mountable (SMT) and has been tested to show a typical return loss of 20dB or better over a DC to 44GHz bandwidth. Barry Industries is an ISO9001:2015 certified, ITAR registered manufacturer of high-quality thick film resistors, terminations, attenuators and high temperature co-fired ceramic (HTCC) packaging.

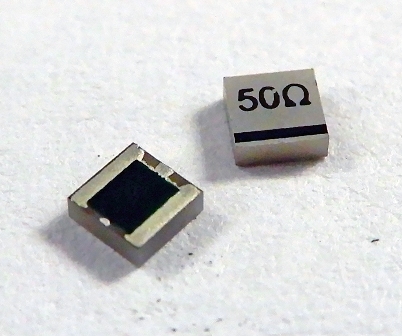

The TS0808ZZ-50R0JN-2S is a compact, 0808 (2.032 x 2.032mm) size ‘flip-chip’ constructed of robust thick film on Aluminum Nitride with solderable terminals. Face down mounting keeps the resistive film co-planar with board traces, thus minimizing parasitic capacitance. This 50-ohm impedance device is RoHS/ REACH compliant and is rated at 1W on a 100°C mounting surface temperature.
The TS0808ZZ-50R0JN-2S is available in bulk or tape and reel packaging for high speed pick and place assembly.
Data sheet, S-Parameters, outline drawings and full documentation of the TS0808ZZ-50R0JN-2S testing procedure are available on the Barry website.
With its ultra-broadband performance, stable 50Ω resistor element and 1.22:1 Max VSWR, the TS0808ZZ-50R0JN-2S is ideal for applications such as 5G wireless point-to-point backhaul.
Further information, samples from stock and assembled test fixtures of the TS0808ZZ-50R0JN-2S can be obtained by visiting Barry Industries’ website at www.barryind.comor by contacting the factory at 60 Walton Street Attleboro, MA USA, Tel. 508-226-3350, e-mail: sales@barryind.com.
Since 1977, Barry Industries, an ISO9001:2015 certified, ITAR registered company, has been supplying the defense, medical and communications industries with highest quality thick film chip resistors, terminations, attenuators high temperature co-fired ceramic (HTCC) packaging. For more information, visit www.barryind.com, or contact the company at 60 Walton Street Attleboro, MA USA, Tel. 508-226-3350 Fax 508-226-3317, e-mail: sales@barryind.com.
